Technical parameter

Function introduction

1. It can be run through TCP/IP network, and can also be run offline

a. The network can check the working status and use status of the protective cabin, lighting and exhaust fan.

b. Adapt to the existing network search, modify IP and other functions.

2. Anti-tailgating function

a. The cabin door is closed by default.

b. When no one is in the cabin, press the door button to open the cabin door and enter the protective cabin; The entry button is not valid when there are people in the cabin.

c. The customer presses the exit button to exit the protective cabin.

3. Voice function

a. When the customer enters the protective cabin, it is sensed by infrared detection and plays the voice "Hello, ** bank welcomes you, please pay attention to lock the door to ensure the safety of your card", and so on.

The voice content can be modified as required.

4. Time constant setting function

a. Door lock relay operation time can be set

b. Customer business handling time can be set

5. Remote control function

a. Can remotely control the opening of the protective hatch door

b. Disable the device remotely

6. Device control function

a. Can control the lighting, exhaust fan and other actions.

b. The exhaust fan is automatically controlled by infrared.

7. Emergency alarm function

a. Reserve an emergency alarm button

8. Anti-fainting function

A. The system confirms that the customer has entered the protective cabin, but the infrared has not detected anyone for a period of time, and the door automatically opens and alarms.

9. Emergency function

a. Reserve the emergency switch to manually control the opening of the electric lock. 10. System maintenance functions

a. Remote deactivation of the containment bay through the center

b. The entry/exit button is invalid after the containment compartment is out of service.

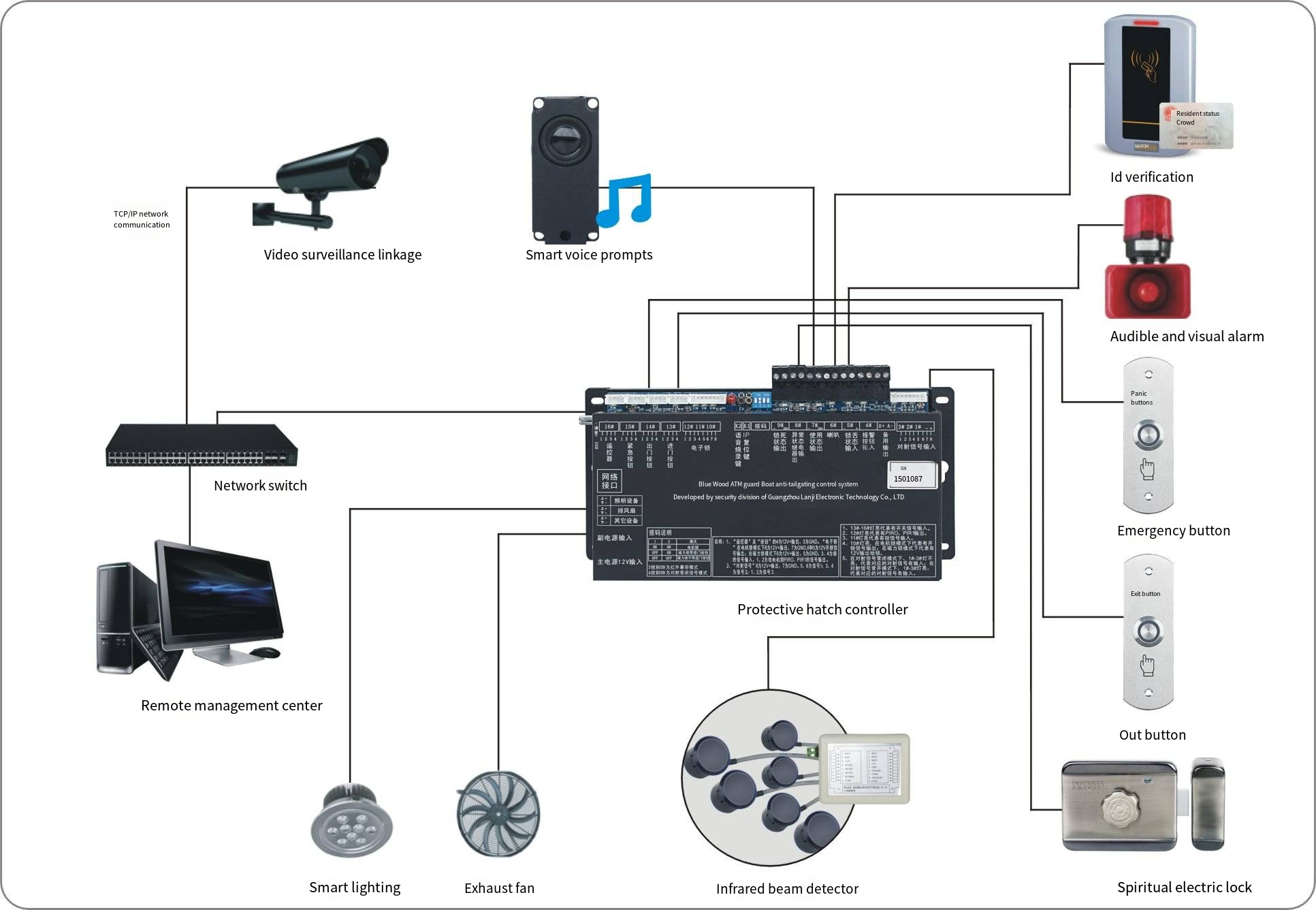

Operation diagram
