S25C/D Metal waterproof machine

Features: S25 metal waterproof integrated machine is a design using the latest RFID identification technology, support IC card identification, waterproof level IP65, three levels of lightning protection, high-performance waterproof integrated machine. It is characterized by beautiful appearance, aluminum alloy housing, acrylic panel, touch keys, suitable for indoor and outdoor environments

Function: a variety of registration methods: fast business card printing, number plus card, mother card plus card; Multiple verification methods: Swipe card, swipe card + password, swipe card or password;

WG input/output function; Compatible with 26/34 input and output stability: three protection circuits are adopted to improve system stability: built-in watchdog circuit to prevent crash; Industrial anti-jamming design circuit, anti-lightning, anti-static, anti-strong interference; Over current, over voltage protection circuit.

Technical parameter

essential parameter
Bottom cover size	86862mm
rated operational voltage	12VDC
input voltage range	9VDC-14VDC
working current	Static working current 100 mA and dynamic working current 200 mA
Registration method	Keyboard registration, mother card registration
Induction card capacity (sheet)	16000
Password capacity	Eight
Master card capacity	10
Open the door delay	The 0-255s can be set up
Card type	IC / ID (optional)
Read the card frequency	13.56MHz/125KHz
Read the card distance	3-125 px (depending on the card)
WG output	Supports the WG 26 / WG 34 format output
WG import	Support WG 26 / WG 34 format input (external header use)
Control the number of doors	One
levels of protection	IP65 (waterproof and dustproof)
work environment	Temperature-30℃ -50℃; relative humidity is 20% -90%

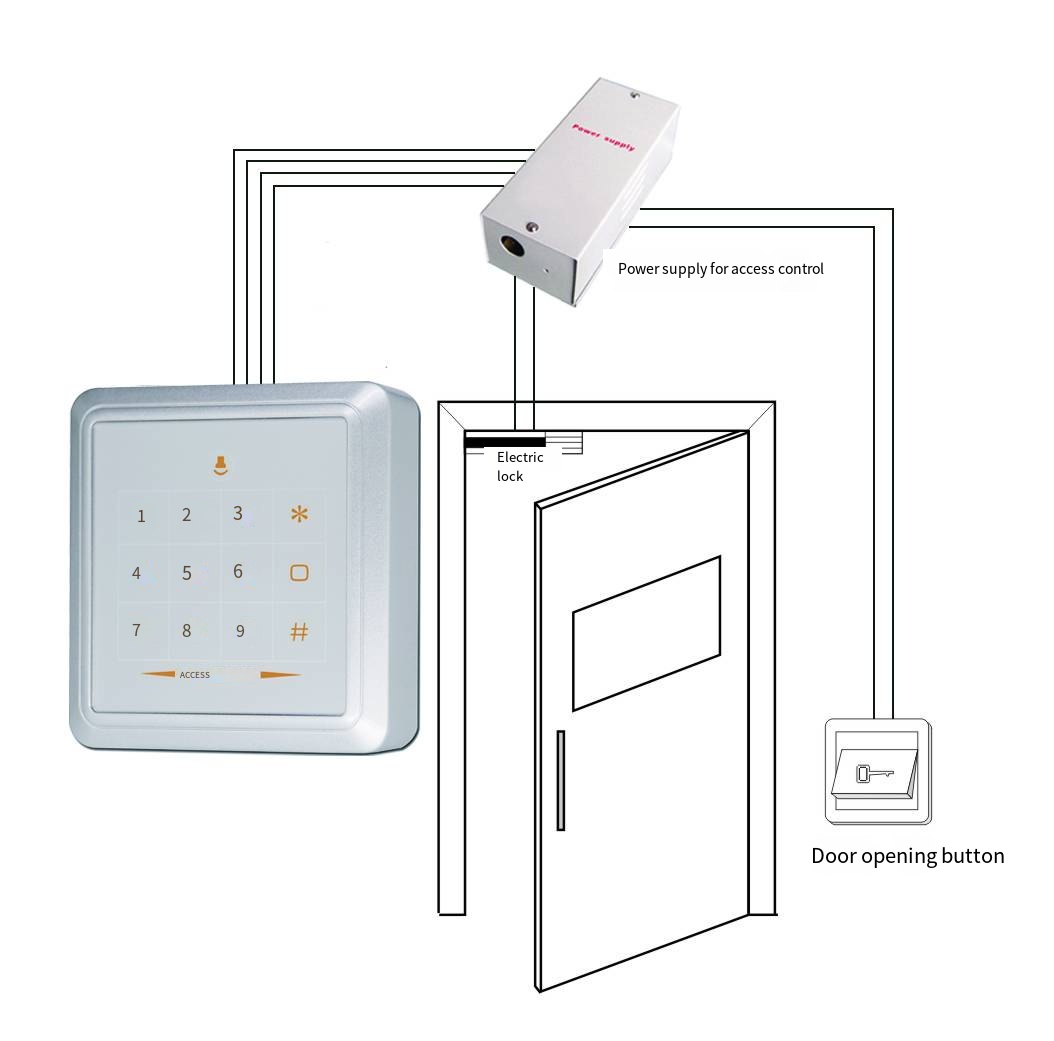

Operation diagram
