FR1000/3000

FR series fingerprint all-in-one is a fingerprint access control device that supports network management, supports U disk download and upload permissions and download records, and can also collect records through the computer and remotely manage access control and set various functional parameters. With screen display operation prompts, rich functions can meet the needs of many application sites. Support WG output and input, door status signal feedback, with mainstream three verification methods (fingerprint/swipe card/password) with high recognition speed and sensitivity. Four protection circuits are adopted to improve system stability and safety: built-in watchdog circuit to prevent crash; Industrial anti-jamming circuit, lightning protection, anti-static, anti-strong interference; Overcurrent, overvoltage protection circuit; Anti-demolition linkage circuit to avoid deliberate disassembly and theft and play an alarm warning role.

Technical parameter

Main engine size	1528026mm
Screen	2.4 inch color screen
Fingerprint recognition time	<1s
False rejection rate	<0.01%
False recognition rate	<0.0001%
Communication mode	TCP/IP
Fingerprint mode	1000/3000 match
Card capacity	1000/3000（Not standard）
Password capacity	1000/3000
Control gate number	1
External card reader	It can be connected with a special fingerprint reader or a Weigand reader head, and can output a group of Weigand signals as a reader head
External switch	1
Card reader protocols are supported	WG26/34protocol
Distance from card reader to controller	Within 100 meters. 80 meters is recommended
Bundled software	Access control channel management systemV5.3
Supporting database	access and sql

Function introduction

FR series fingerprint machine function description:

1, with a variety of verification and identification methods: fingerprint, password, ID/IC card can achieve a variety of combination verification methods: card, fingerprint, password, fingerprint + card, fingerprint + password, fingerprint + card + password, fingerprint/card, fingerprint/password

2, with a variety of communication connection methods: TCP/IP, RS485, U disk connection

3, with a variety of use:

Used as an all-in-one machine, it can be connected to the ordinary Wiegand card reader inside the card confirmation, and can be connected to the fingerprint reader for internal and external fingerprint verification

Used as the read head, it can output the Weigand protocol to connect to the standard access control board, and connect to the customized fingerprint controller through the default protocol interface

The diversified functions of FR series fingerprint all-in-one machine can meet the different needs of all walks of life and various places.

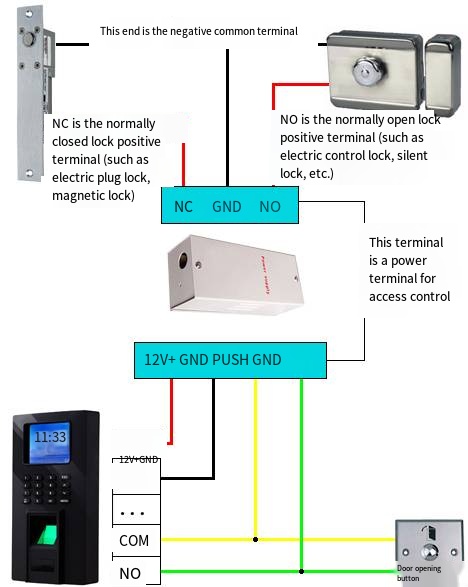

Operation diagram
