FA3040

Fingerprint access control equipment is a new series of innovative products, fingerprint algorithm is realized on the motherboard, fingerprint reading head does not need to do any operation, eliminating the traditional fingerprint reading head and controller dual cumbersome registration, safe and convenient, designed for high-end users. External special fingerprint reader, support U disk operation, TCP/IP networking, equipment using advanced ARM chip, industrial design.

The fingerprint access controller combines the advantages of fingerprint recognition and industrial access control, which not only improves the shortcomings of the easy replication of traditional cards, but also solves the cumbersome double registration operation when the ordinary fingerprint reader connects the controller.

Technical parameter

Motherboard size	208*106mm
Communication mode	TCP/IP
Fingerprint capacity	3000
Card capacity	3000（Not standard）
Password capacity	3000
Control gate number	4
External card reader	Can be connected to 4 special fingerprint reader, four-door one-way verification
External switch	4
Card reader protocols are supported	Internal manufacturer's agreement, incompatible with other agreements in the market
Distance from card reader to controller	Within 100 meters. 80 meters is recommended
Bundled software	Security access control system5.1
Supporting database	access and sql

Function introduction

1. A variety of ways to open doors:

Fingerprint door: Open the door directly through fingerprint verification

Swipe card to open the door: Verify the door by swiping ID/IC card directly

Fingerprint or swipe card to open the door: you can open the door by fingerprint verification and swipe card verification alone

Fingerprint and password to open the door: the fingerprint and password must be verified at the same time to open the door

Fingerprint and swipe card to open the door: the fingerprint and card must be verified at the same time to open the door

Fingerprint plus swipe card plus password: The fingerprint, card and password must be verified at the same time to open the door

Fingerprint or swipe card or password: Any of the three verification methods of fingerprint, card and password can be opened separately

2, remote door opening: you can realize the function of remote open access control through the software background

3, real-time monitoring function: through the software background real-time monitoring of entering and leaving the personnel status

4, time group management: in a day, you can set up to 6 effective open time periods. At the same time, you can also set a week identifier. A week can specify a daily traffic period.

5, holiday access control period: During the holidays, you can set a different time period to the access control.

6. IP reset function: The IP Settings of the device are confused and cannot be connected, you can reset the IP by pressing the reset button

7. Advanced functions: multi-door interlock, multi-fingerprint door opening, first card door opening, regular opening and closing, emergency opening and closing

8, a variety of alarm functions: the door is not closed for a long time, illegal entry, fire alarm, coercion alarm, forced door locking

9, with functions: attendance function

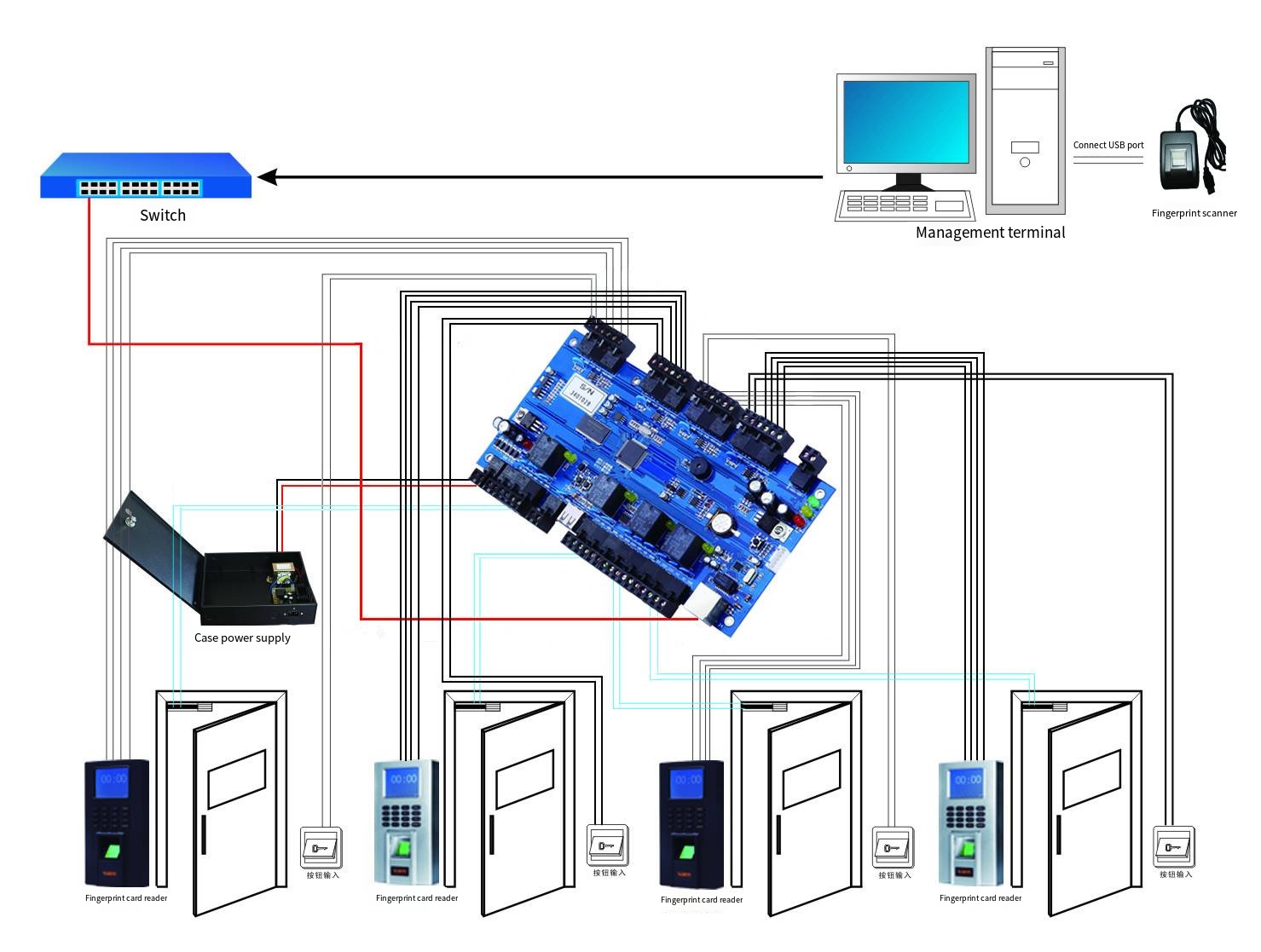

Operation diagram
