30-IDS

Nowadays, the state is implementing the real-name system more and more vigorously, all walks of life, all kinds of public places need to do real-name authentication, therefore, real-name access control system is essential.

 Real-name ID card access control system is a Nabon's independent research and development of ID card dedicated cloud access control equipment, supporting special ID card reader, can realize the function of reading ID card open door, record the complete information of ID card, and can be uploaded to the WAN through cloud technology, cross-network segment cross-regional connection, is the real read ID card real information and can achieve WAN connection cloud access control, Instead of the traditional read-only ID card serial number to open the door of the access control device.


Technical parameter

Type30-IDS
Communication modeTCP/IP
External card reader protocolWG26/WG34、RS485
Number of external card readers2WG,2 485
Type of external card readerWG26/WG34Card reader, special ID card reader
Permission capacity30000
Record capacity100000
Usage modeThe non-registration mode, registration mode, and background authentication mode can be switched freely
Bundled softwareC/S architecture access channel management system V5.3

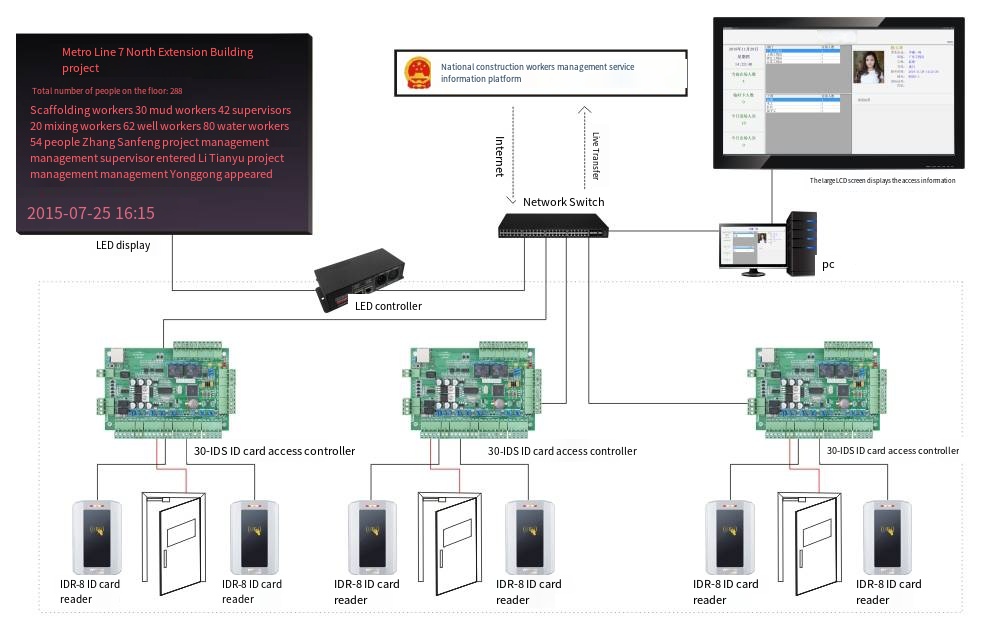

Operation diagram
