Technical parameter

Function introduction

1. General function

1.1 Multiple ways to open doors:

● Swipe the card to open the door

● Password door opening

● Swipe your card or password to open the door

● Swipe card + password to open the door

● Other door opening methods: fingerprint door opening, ID card door opening, CPU card door opening, face recognition, iris, palm pattern, mobile phone, etc.

1.2 Remote door opening: Through the background software installed on the computer to achieve remote door opening.

1.3 Real-time Data extraction: Access control data is directly stored in the database without data reclamation.

1.4 Real-time monitoring function: The photos and basic information of the cardholder can be monitored and seen through the background software.

1.5 Card loss reporting function: The loss of the sensor card can be reported immediately in the software system

1.6 Flexible time management: In a day, you can set up to 6 effective open time periods. At the same time, you can also set a week identifier. A week can specify a daily traffic period.

1.7 Flexible permission management: you can set which doors a person can pass, or a person can pass all the doors

1.8 Emergency opening and closing: The door can be set to the normal opening and closing state.

1.9 Access control Holiday function: During holidays, the opening time of the user is automatically changed to the opening time of the holiday

2. Special functions

2.1 Alarm function: The following alarm functions can be realized through the external alarm module and the sound and light alarm

● Invalid card swiping alarm

● The door is not closed for a long time

● Fire Alarm

● Break-in alarm

● Threat alarm

● Intelligent linkage alarm

2.2 Multi-card opening function: multiple people are required to hold a registration card and swipe the card in turn to open the door.

2.3 The first card opening function: that is, within the specified time, after the first card swipes the card, the door can be transformed into the corresponding state.

2.4 Temporary door opening: You can set the effective time of the card to a few minutes, and you can not open the door at other times.

2.5 Anti-stealth, anti-trailing: the card holder from a door to enter the card must be from a door to swipe card out, if the door does not swipe card, follow others in, go out when the card system will not allow him to go out.

2.6 Timed door opening: Within the specified time range, the door is normally open.

2.7 Automatic service function: The system automatically extracts the data in the controller within the time set by the user, without the user's manual data recovery.

2.8 Internal and external verification function: The external card can be opened only after the internal card has confirmed, and a maximum of five internal cards can be set.

2.9 Swipe interval setting: You can set the swipe interval of the same card, 0-65000s can be set

2.10 IP Reset Function: If the IP address of the device is incorrectly set and cannot be connected, you can reset the IP address by pressing the reset button

2.11 Limit the number of passes: The number of passes in each period can be limited, and 0-255 times in the period can be set freely

3. Significant functions

3.1 Video capture function: The camera deployed at the door can be connected to Hikvision's camera, connected to the same LAN with the computer, and the video surveillance function can be realized through the access control management software. The image capture is carried out when the card is swiped, and the photo file generated is immediately stored in the computer.

3.2 Card reader compatible with two communication protocols: international standard card reader with external Wiegand 26 / Wiegand 34.

3.3 ID card recognition: The Nabon access control management system is compatible with the second-generation reader application program interface. The second-generation reader uses wireless transmission to read out the personal information in the ID card and can be imported into the employee information of the access control management system.

4, with features

4.1 Attendance function

4.2 Temporary Visitors

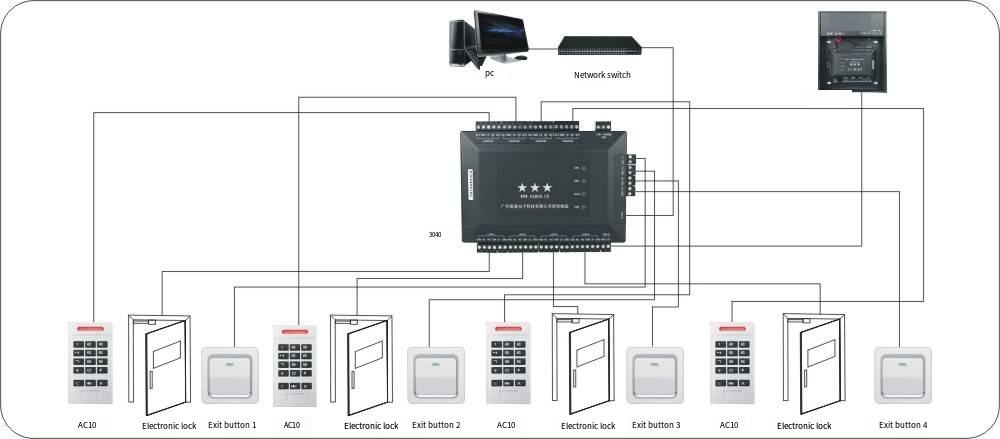

Operation diagram
