  • 3040-S

3040-S

Industrial-grade four-door one-way cloud service WAN access controller, is the latest developed WAN communication access control equipment, is a perfect combination of access control system and cloud technology, communication speed, high data security. The equipment is powerful, in addition to the characteristics of WAN communication, almost covers all the functions of the market access control needs. It is widely used in bank vaults, military, public security, government agencies, large group companies, enterprises and institutions with more terminal equipment and complex management levels across regional and regional networks.

Technical parameter

Motherboard size166*112mm
Communication modeTCP/IP
Total record98000(Recyclable storage)
Card capacity25000
Password capacityMatch with card
Control gate number4
External card reader4
External switch4个
Card reader protocols are supportedWG34/26
Distance from card reader to controllerWithin 100 meters. 80 meters is recommended
Bundled softwareCard management system5.0
Supporting databaseaccess and sql

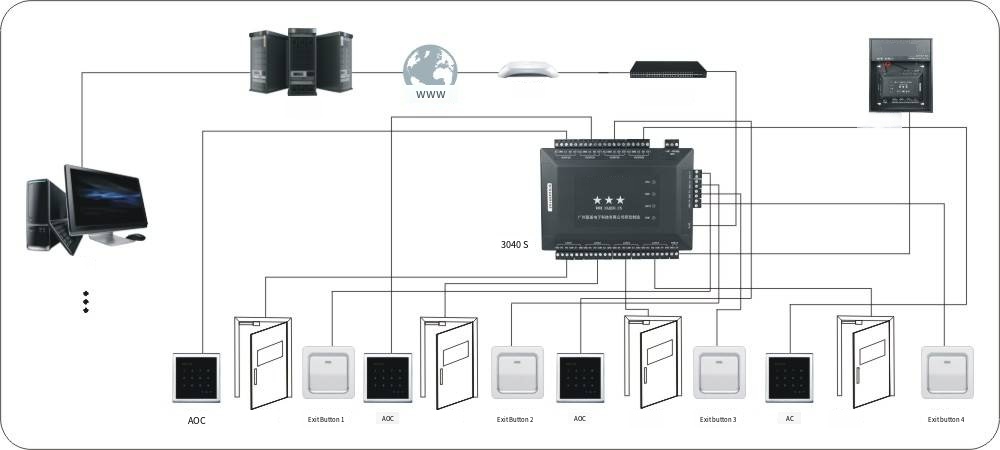

Operation diagram
