J-81T is an innovative elevator floor control equipment, the traditional elevator floor control, combined with the advantages of face recognition, human face recognition touch screen to improve the original elevator floor selection, making the elevator use more intelligent and more convenient. Floor permissions can host registration, without networking, to achieve real offline use; When networking use, only one network cable is needed to connect the face machine, and there is no need for multiple networking operations, which greatly reduces the construction difficulty of the elevator.
Operating system | Linux |
Bioassay | Binocular biopsy |
Camera | RGB+IR 2 million live double shot |
Screen | 8 inch IPS HD display |
Touch screen | 800*1280touch screen |
Language | Simplified Chinese |
Power supply | DC12V/2A |
Working temperature and humidity | -40℃~70℃;10~90%RH |
Controlled floor | Standard face host +16 layer expansion board, can expand 4 expansion boards, up to 64 layers of control |
Face capacity | Standard 10000 |
Card capacity | Standard10000 |
Record capacity | 50000(circular storage) |
Identify speed | <1s |
Verification mode | Face/card, face plus card |
Swiping card | Standard IC card |
Waterproof | IP65 |
Communication mode | TCP/IP |
External dimension | 248mm*134mm*24mm |
Bundled software | Access control channel management systemV6.0 |
● Recognition accuracy up to 99%
● Recognition speed less than 1 second
● Support in vivo testing
● Direct layer control integrated equipment, multi-layer authority optional layer, single-layer authority can be direct

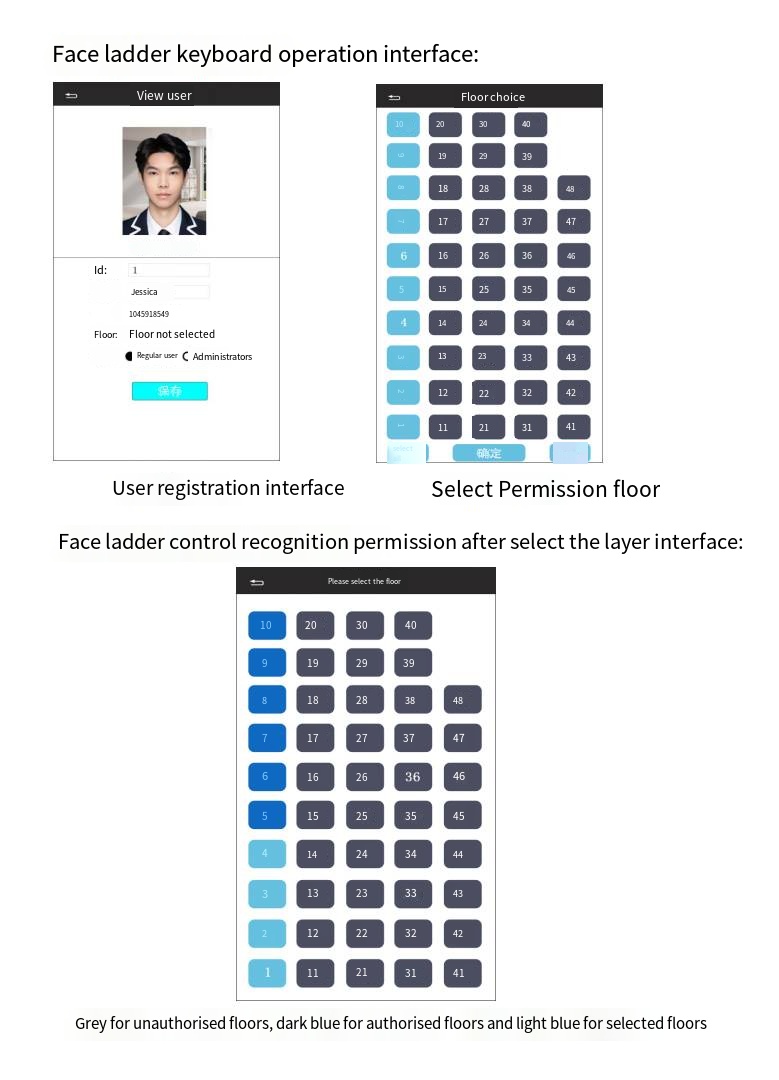

● Support custom standby screen saver, play advertising screen, long standby automatic extinguishing screen
● Support time group management, holiday time
● Support regular ladder opening period
● Support software remote ladder and other functions
